GPS Module ES1010 CXD5603GF

DeliNCOMM ultra-low power GPS module is also the world's first intelligent GPS module with only 5MA working power
We are the first manufacturer to cooperate with the authentication of SONY CXD5603GF GPS chip, and the first to make the chip into 1010/1108/1513/2107 ultra-small size module.Our module has been used in sports watches;The Internet of things;Smart handheld products.The GPS module is produced strictly according to IATF16949 quality system standard, and has passed European CE and FCC certification.
Advisory

Product description

Downloads

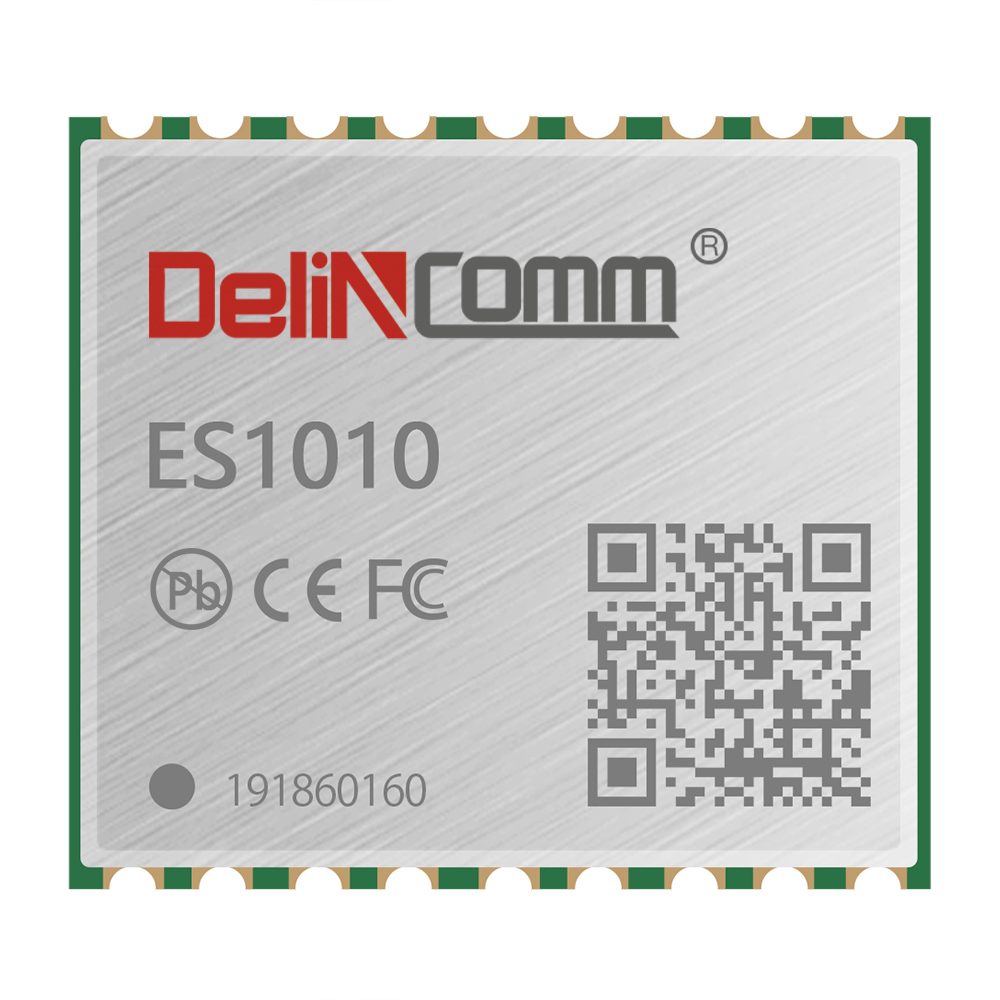

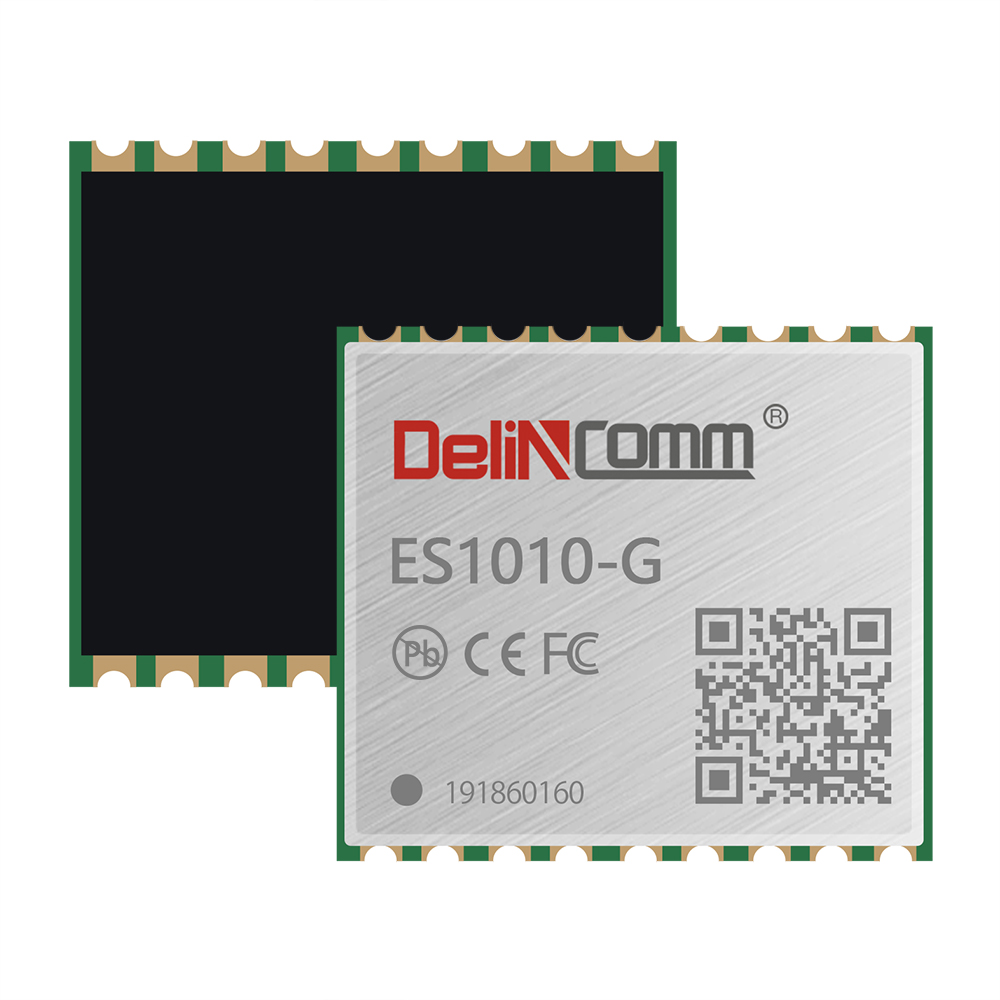

GPS Module ES1010 CXD5603GF


Delin Comm ES1010 is a complete GNSS module. The module can simultaneously acquire and track multiple satellite constellations that include GPS, GLONASS and QZSS or BEIDOU .It features ultra-low power consumption and small form factor. With the superior and performance even in urban canyon and dense foliage environment.

ES1010 is a super low-power upgraded GNSS module with a working power consumption of only 5MA, plus -165dbm tracking sensitivity extended positioning to cover every corner.The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones,Sports watches, handheld devices, IOT and other portable devices



Features

Build on high performance, low-power SONY CXD5603GF chip set
Ultra high Track sensitivity: -165dBm
Extremely fast TTFF at low signal level
Built in high gain LNA
Low power consumption: Max 8.5mA@3.3V
NMEA-0183 compliant protocol or custom protocol
Operating voltage: 2.8V to 5.5V
Operating temperature range:-40to85℃
SMD type with stamp holes
Small form factor: 10.1x9.7x2.2mm
Communication type: UART/TTL
RoHS compliant (Lead-free)
IATF16949 quality control
