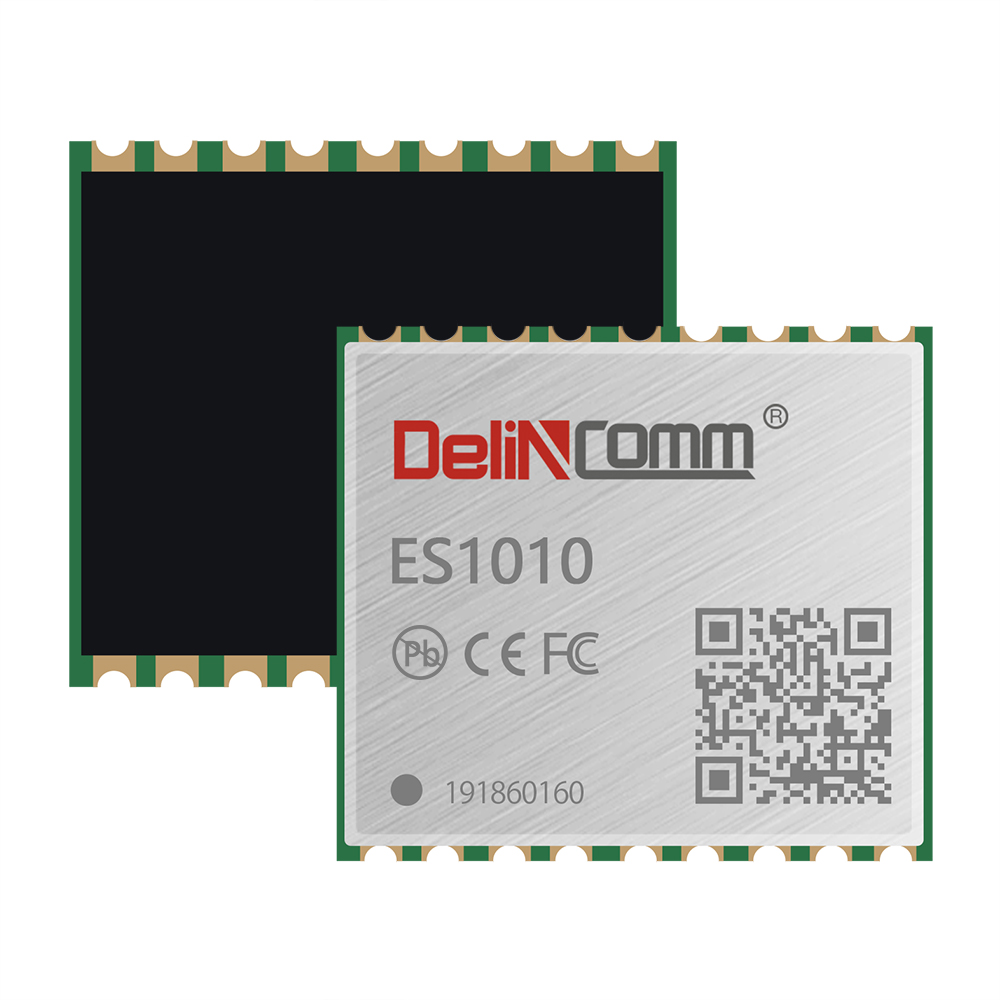

GPS&GLNASS Module ES1010-G

The DeliNCOMM GNSS module uses the SONY CXD5603GF chip, which can simultaneously acquire and track multiple satellite constellations, including GPS, Beidou, GALILEO, QZSS and SBAS. It also has superior positioning capabilities in urban canyons and dense plant environments. This module has built-in LNA and filter, and it still performs well in the interference environment.
ES1010-G is strictly in accordance with IATF16949 quality control standards, and has passed ROHS CE FCC certification

Advisory

Product description

Downloads

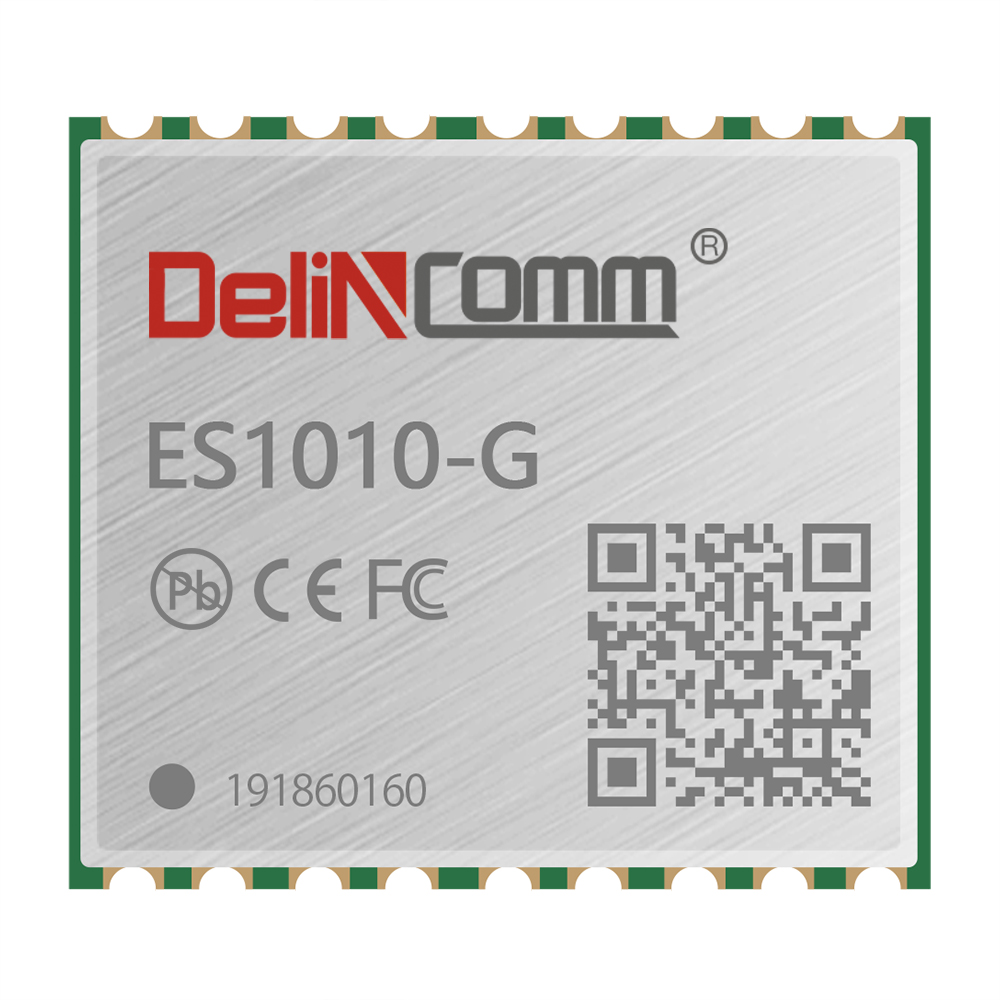

GPS&GLNASS Module ES1010-G

General Description

Delin Comm ES1010-G is a complete GNSS module. The module can simultaneously acquire and track multiple satellite constellations that include GPS, GLONASS and QZSS or BEIDOU .It features ultra-low power consumption and small form factor. With the superior and performance even in urban canyon and dense foliage environment.

ES1010-G is a super low-power upgraded GNSS module with a working power consumption of only 5MA, plus -165dbm tracking sensitivity extended positioning to cover every corner.The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones,Sports watches, handheld devices, IOT and other portable devices


Features

Build on high performance, low-power SONY CXD5603GF chip set

Ultra high Track sensitivity: -165dBm

Extremely fast TTFF at low signal level

Built in high gain LNA

Low power consumption: Max 8.5mA@3.3V

NMEA-0183 compliant protocol or custom protocol

Operating voltage: 2.8V to 5.5V

Operating temperature range:-40to85℃

SMD type with stamp holes

Small form factor: 10.1x9.7x2.2mm

Communication type: UART/TTL

RoHS compliant (Lead-free)

IATF16949 quality control



1.2 Power Supply

Regulated power for the ES1010-G is required. The VCC Pin Need a stable DC voltage supply. Power supply ripple must be less than 30mV. The input voltage Vcc should be 2.8V~5.5V, Recommended power supply voltage is 3.3V . maximum current is 8mA. Suitable decoupling must be provided by external decoupling circuitry.

1.3 UART Ports

The module supports two full duplex serial channels UART. All serial connections are at 3V CMOS logic levels, if need different voltage levels, use appropriate level shifters. The baud rate of both serial ports are fully programmable, the data format is however fixed: X, N, 8, 1, i.e. X baud rate, no parity, eight data bits and one stop bit, no other data formats are supported, LSB is sent first. The modules default baud rate is set up 115200bps, however, the user can change the default baud rate to any value from 4800 bps to 115kbps. UART port can be used for firmware upgrade, NMEA output and SONY proprietary commands input.
