General Description

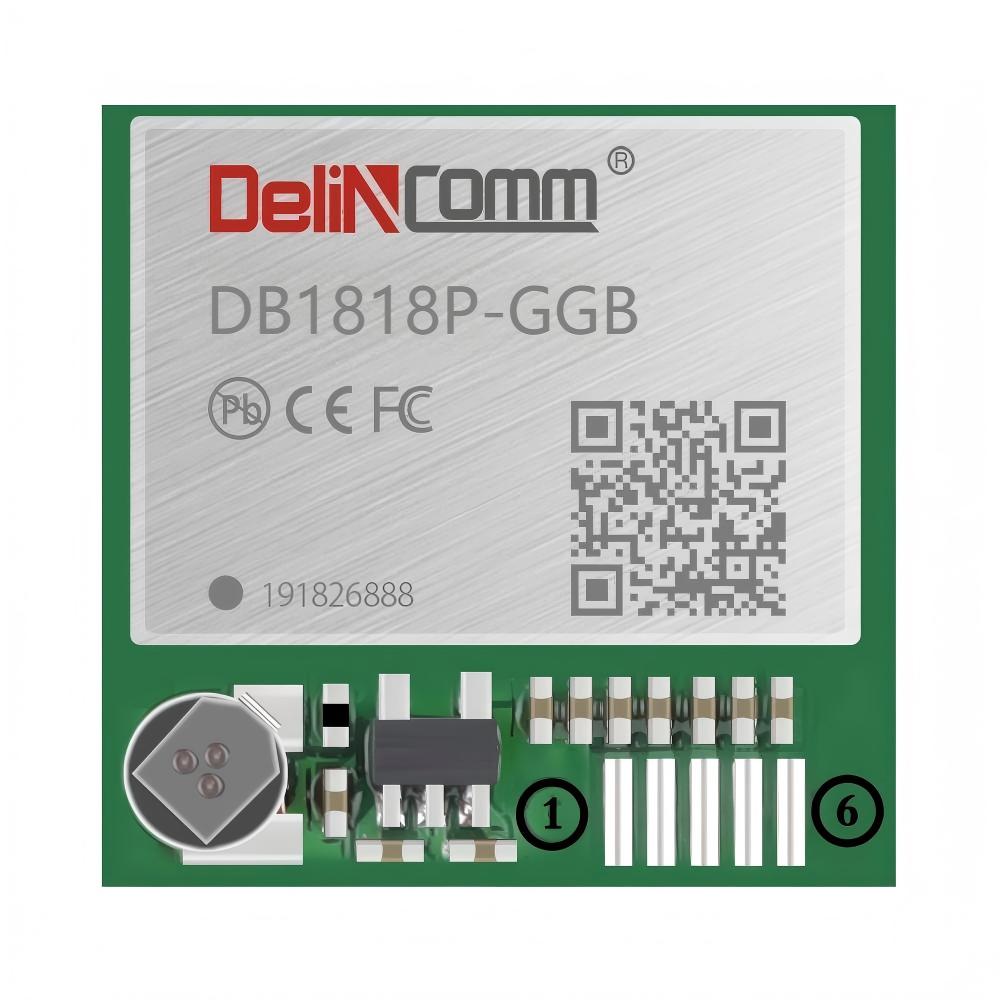

The DB1818P-GGB is a receiving module that supports single-band&multi-mode. It has built-in highly integrated GNSS receiver chip, supports multi band and multi system cm4f (main frequency 350mhz, 22nm Technology) chip of Third-generation BeiDou Navigation Satellite System (BDS-3). Besides,it is capable of tracking all global civil navigation systems (BDS,GPS,GLONASS,Galileo,QZSS,and SBAS) in all bands.
DB1818P-GGB module is based on the state of art BDS-3 architecture, integrating Singleband and multi-system GNSS RF and base band. This newly designed architecture makes this single chip achieve sub-meter level position accuracy without correction data from ground-based augmentation station and higher sensitivity, greater for improved jam resistance and multipath, provide a highly robust service in complicated environment.
DB1818P-GGB module contains BK1616P positioning engine inside, featuring high sensitivity, low power consumption, and fast TTFF. The superior cold start sensitivity allows it to acquire, track, and get position fix autonomously in difficult weak signal environment. The receiver’s superior tracking sensitivity allows continuous position coverage in nearly all outdoor application environments. The high performance signal parameter search engine is capable of testing 16 million time-frequency hypotheses per second, offering superior signal acquisition and TTFF speed.
Applications
LBS (Location Based Service)
PND (Portable Navigation Device)
Vehicle navigation system
Mobile phone
Features
Build on high performance, low-power BK1616P chip set
Ultra high Track sensitivity: -165dBm
Support Windog function, and RTC
Concurrent reception of single-band and multi- system satellite signals
Supports all civil GNSS signals
Supports BDS-3 signal
Extremely fast TTFF at low signal level
Multipath detection and suppression Works with passive and active antenna
Low power consumption: Max 32mA@3.3V
NMEA-0183 compliant protocol or custom protocol Operating voltage:3.0V~5.5V

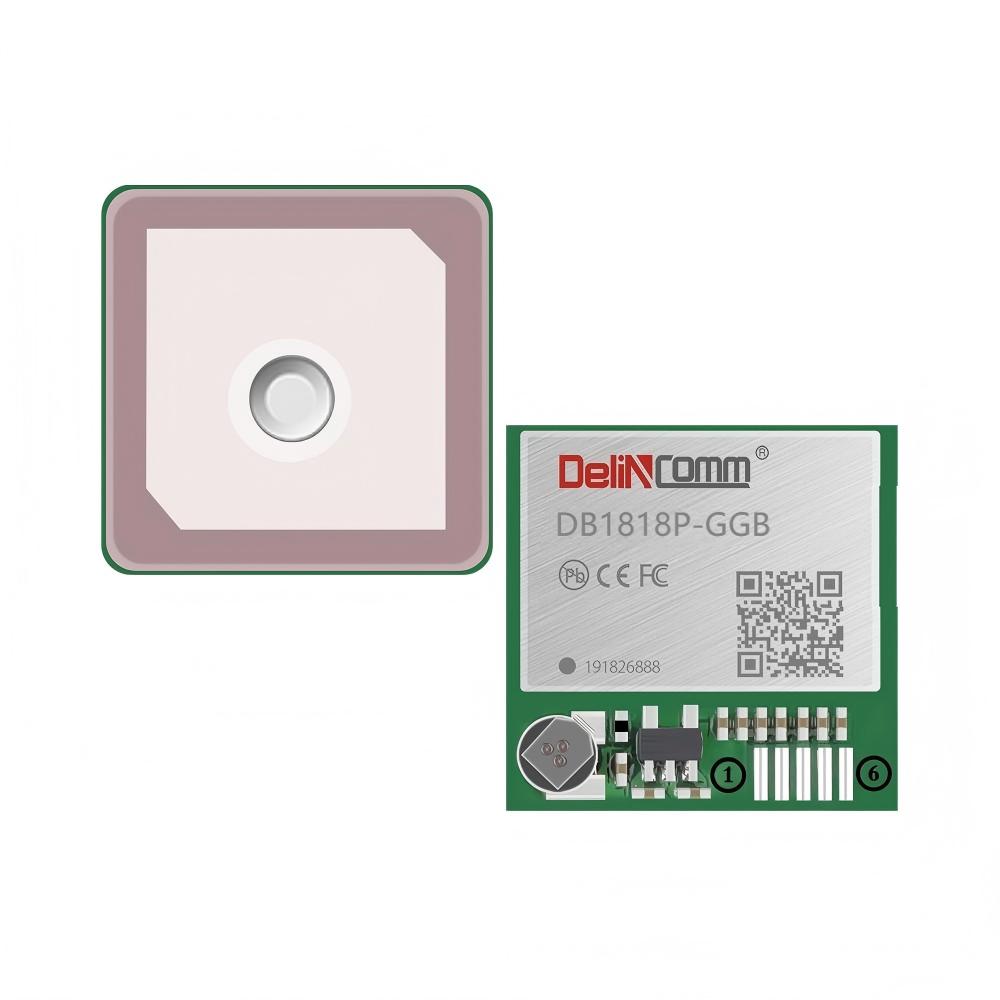

Patch Antenna Size: 18x18x4mm
Small form factor: 18.3±0.5x18.3±0.5x6.8±0.5mm
Interface type:0.8mm 3Pin connector, L=45±5mm
Weight: Approx. 7.7g（±3%）
Operating temperature -40 ~ +85ºC
RoHS compliant (Lead-free)
