Features

 Build on high performance, low-power u-blox UBX-M8030-KT chip set

 Ultra high sensitivity: -167dBm

 Extremely fast TTFF at low signal level

 Built in Infineon BGA524N6 high gain LNA

 Low power consumption:Max45mA@3.3V

 NMEA-0183 compliant protocol or custom protocol

 Operating voltage: 3.3V--5.5V

 Operating temperature range:-40to85℃

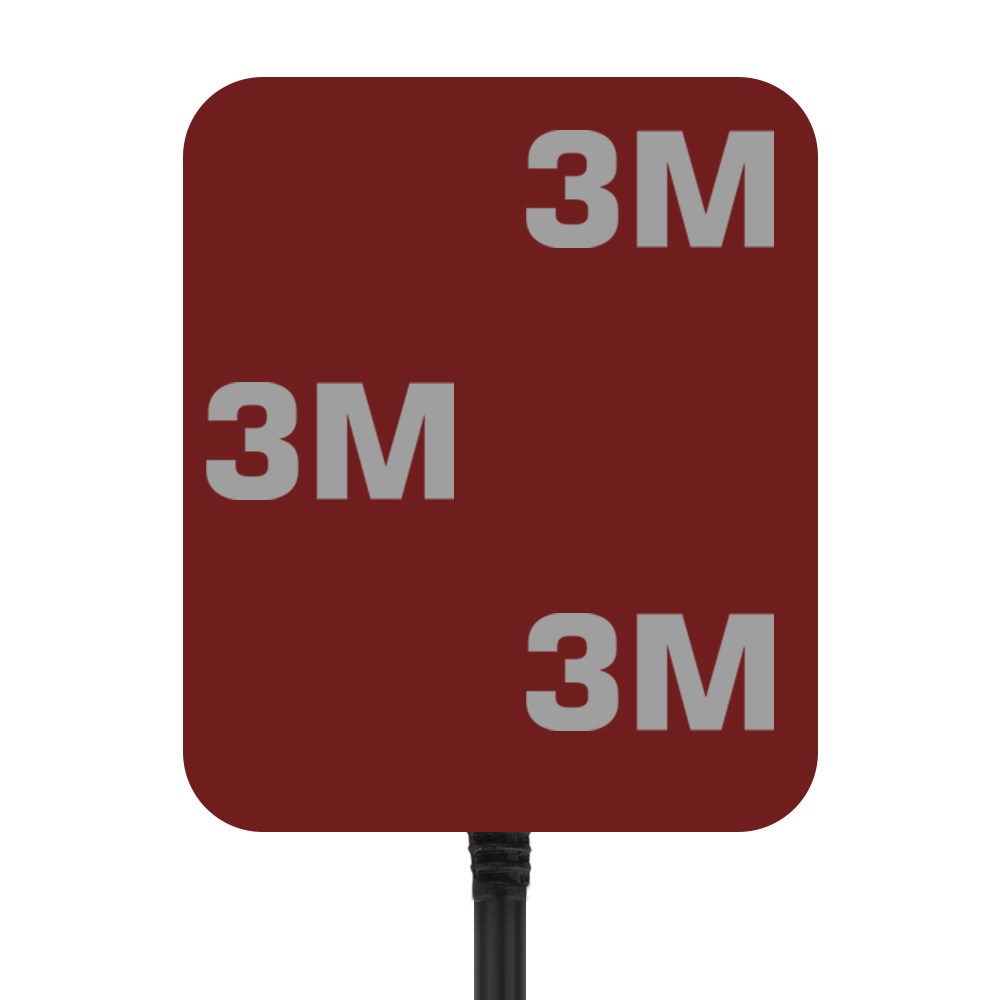

 Patch Antenna Size: 25x25x4mm

 Small form factor: 45x38x13mm

 Communication type: UART/TTL

 Baud rate:9600bps, Update Rate:1HZ

 Wire interface type: USB (type A) male head , L=300cm

 RoHS compliant (Lead-free)

General Description

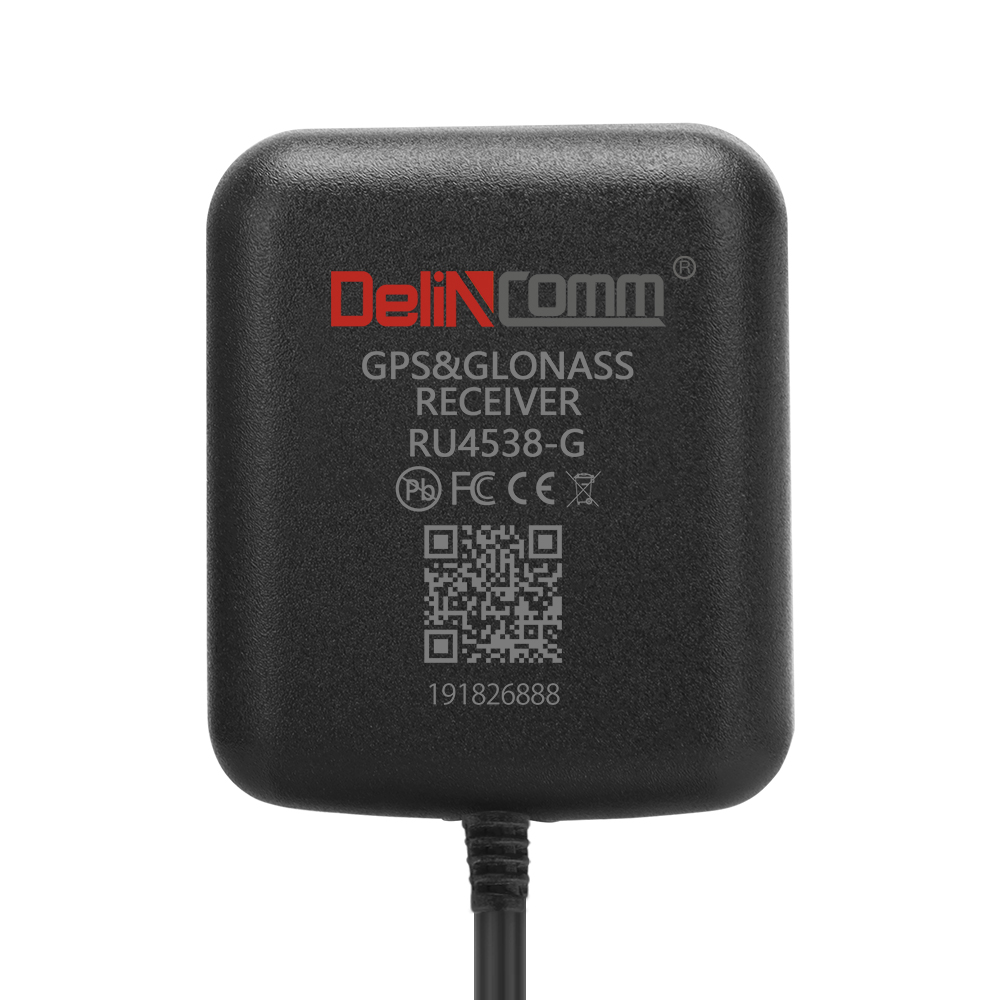

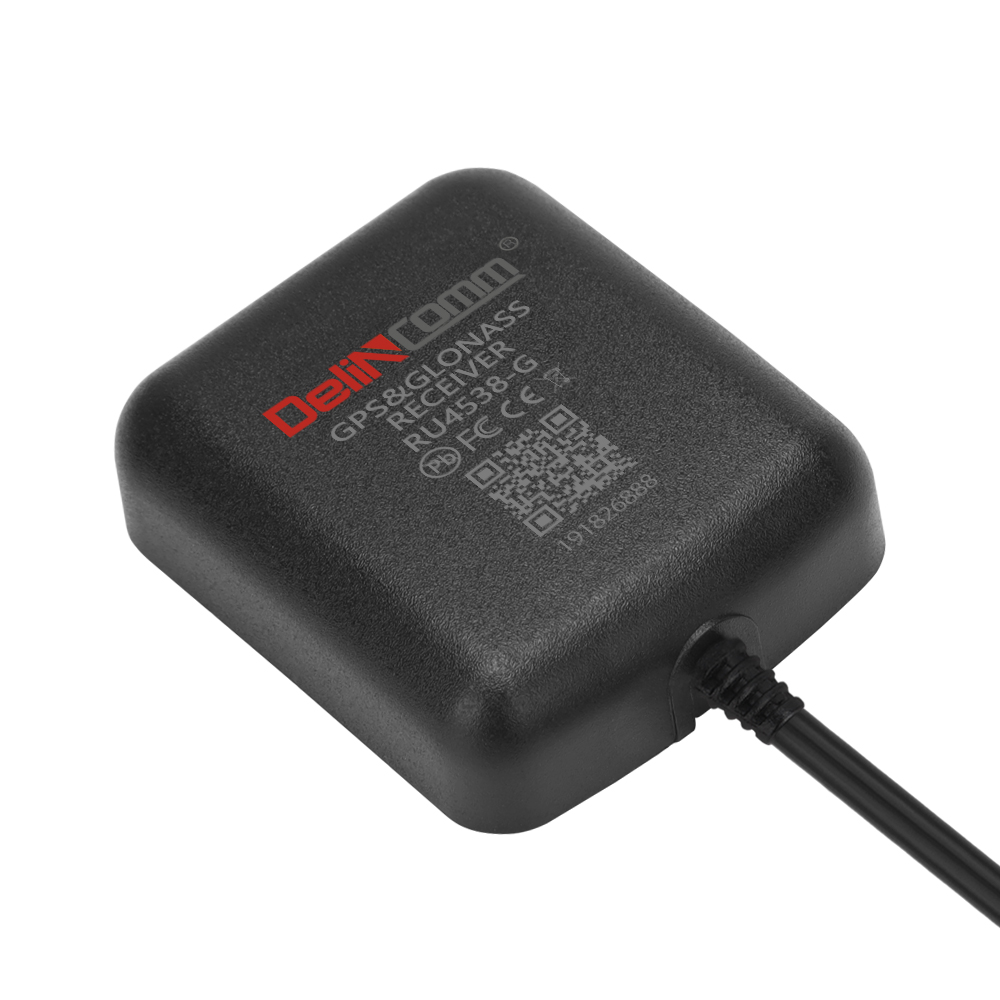

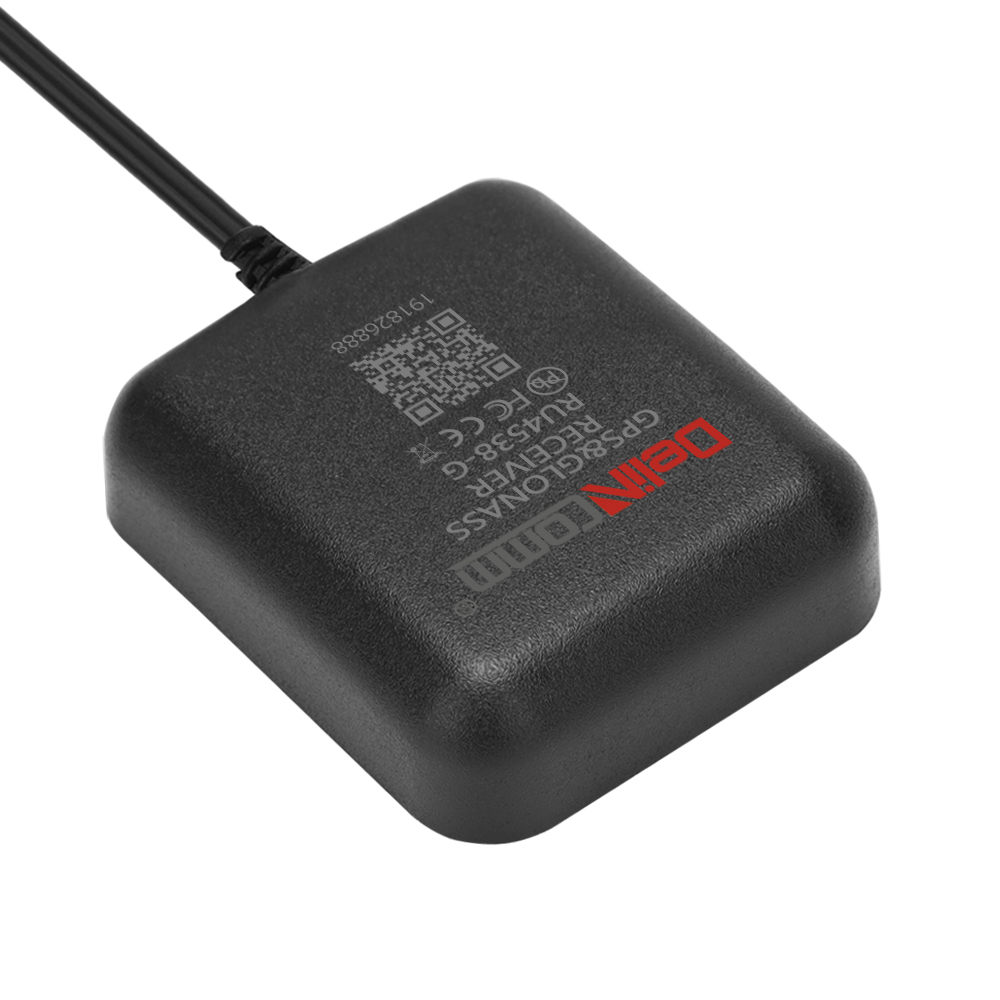

The RU4538-G module series is a family of stand alone GNSS receivers featuring t he high performance u-blox M8 positioning engine. These flexible and cost effective receivers offer nu merous connectivity options in aminiature 45x38x13 am package.Their compact architecture and power and memory options make RU4538-G UB8FUSB30 0 modules ideal for battery operated mobile devices with very strict cost and space constraints. The 72-channel u-blox M8 positioning engine b oasts a Time-To-First-Fix (TTFF) of under 1 second. The dedicated acquisition engine,with over 1 million correlators is capable of massive parallel time/frequency space searches, enabling it to find satellites instantly. Innovative design and technology suppresses jamming sources and mitigates multipath effects, giving RU4538-G GNSS receivers excellent navigation performance even in the most challenging environments.RU4538-G modules are not desi gned for life saving or supporting devices or for av iation and should not be used in products that could in any way negatively impact the security or heal the of the user or third parties or that could cause damage to goods.

Applications

 LBS (Location Based Service)

PND (Portable Navigation Device)

 Vehicle navigation system

 Mobile phone
