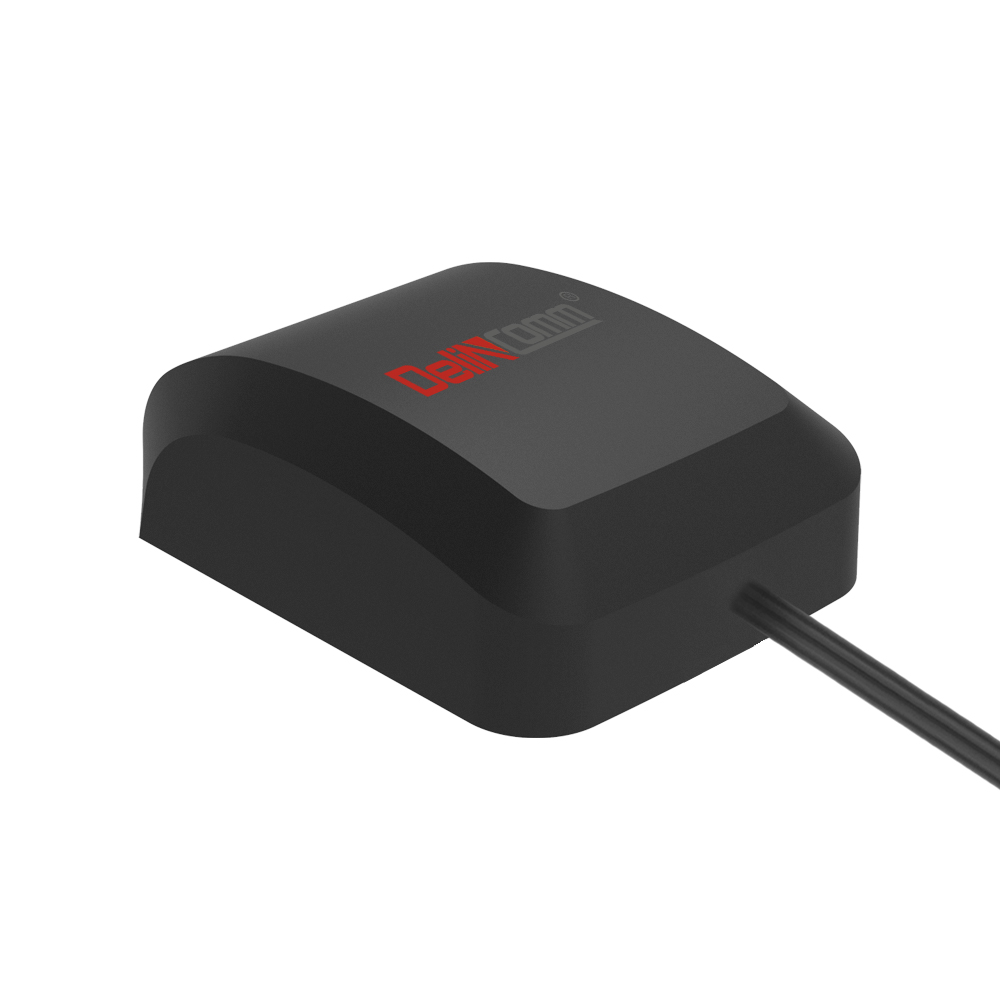

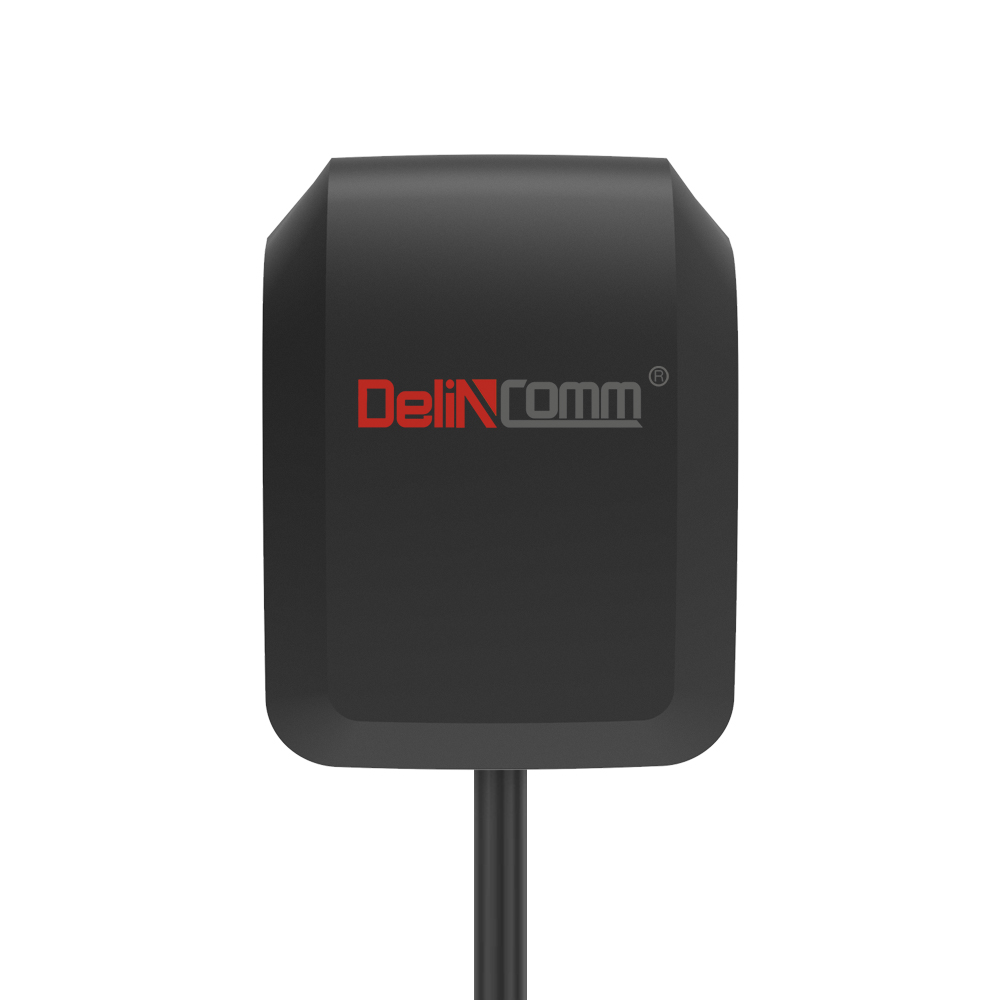

AGG-M4837 GPS&GLONASS外置天线
Item | Specifications | |
Antenna | Center Frequency | 1575.42/1600±3 MHz |
Gain | 3dBi | |
V.S.W.R. | ≤2.0 | |
Ploriaztion | RHCP | |
Impedance | 50Ω | |
Axial Ratio(with 70mm Square GND plan) | 3.0dB±0.2 | |
Frequency Temperature Coefficient (ppm/℃) | 0±10 | |
LNA | Gain | 26±3dB |
V.S.W.R. | ≤2.0 | |
Noise Figure | <2.0 | |
Supply Voltage | 3～5V | |
Current Consumption | ≤20mA | |
Mechanical | Dimension | 48×37×17 mm |
Cable | RG174 / 3m | |
Mounting Method | Screw | |
Connector | FAKRA | |
Weight | 80g | |
Operating Temp. | -40℃～+85℃ | |
Operating Humidity | 0%～95% | |
