General Description

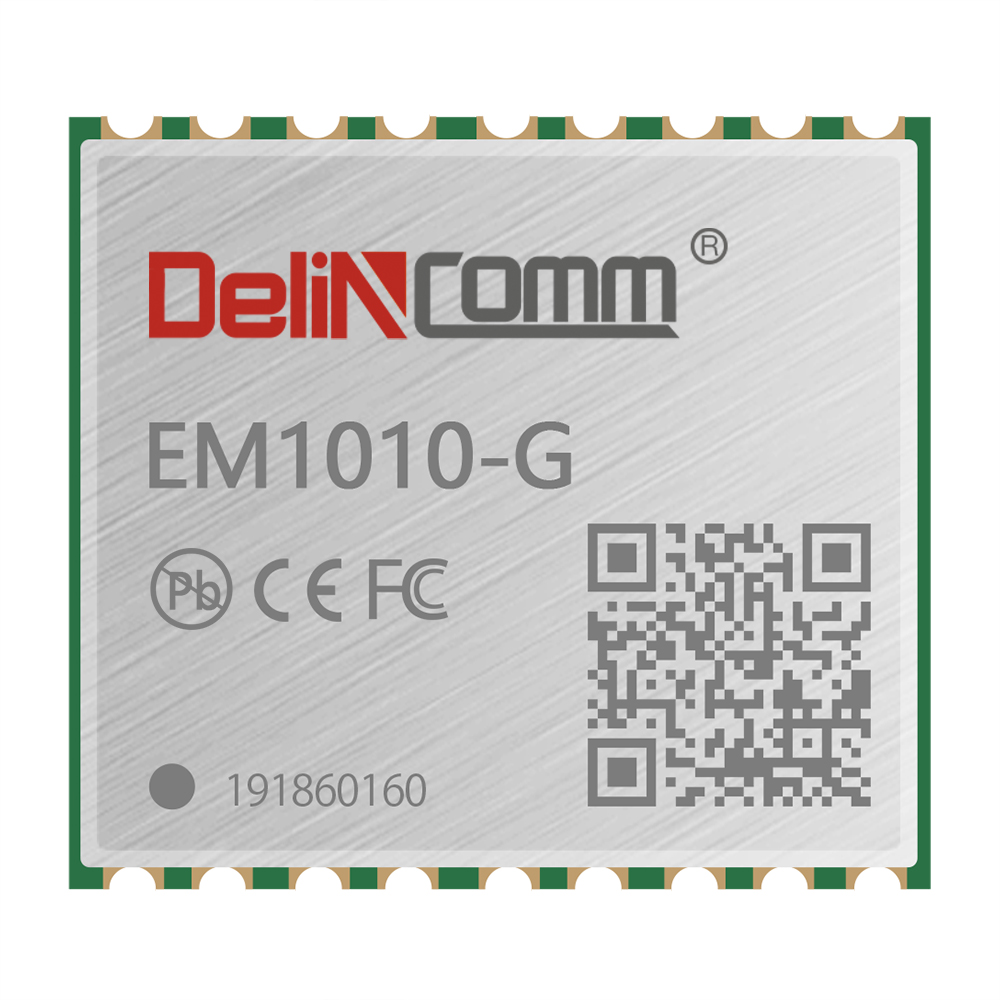

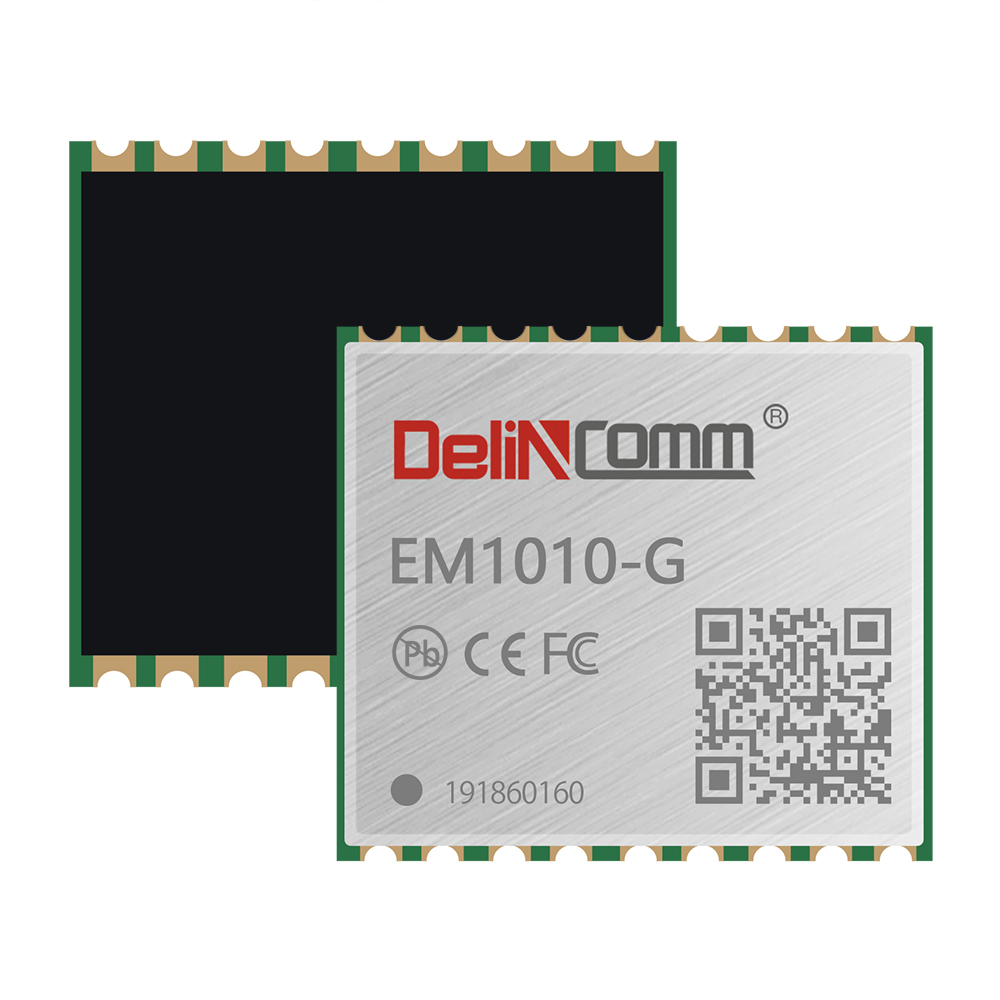

Delincomm EM1010-G is a receiving module that supports single frequency and multi-mode. It has built-in highly integrated GNSS receiver chip, supports multi band and multi system cm4 f ( main frequency 5 3 0 mhz, 12NM Technology) chip of Third- generation BeiDou Navigation Satellite System (BDS-3). Besides, it is capable of tracking allglobal civil navigation systems (BDS, GPS, GLONASS, Galileo, QZSS and SBAS) in all bands.
EM1010-G module is based on the state of art CYNOSURE III architecture, integrating single- band and multi- system GNSS RF and baseband. This newly designed architecture makes this single chip achieve sub- meter level position accuracy without correction data from ground-based augmentation station and higher sensitivity, greater for improved jam resistance and multipath, provide a highly robust service in complicated environment.
EM1010-G module contains AG3335M positioning engine inside, featuring high sensitivity, low power consumption, and fast TTFF. The superior cold start sensitivity allows it to acquire, track, and get position fix autonomously in difficult weak signal environment. The receiver’ s superior tracking sensitivity allows continuous position coverage in nearly all outdoor application environments. The high performance signal parameter search engine is capable of testing 1 6 million time- frequency hypotheses per second, offering superior signal acquisition and TTFF speed.
Applications
LBS (Location Based Service)
PND (Portable Navigation Device)
Vehicle navigation system
Mobile phone
Features
Build on high performance, low-power MediaTek AG3335M chip set
Ultra high track sensitivity: - 165dBm
Concurrent reception of multi-band and multi-system satellite signals
Supports all civil GNSS signals
Supports BDS-3 signal: B1C, B2A and B3I
Extremely fast TTFF at low signal level (Cold start ≤30s, Hot start ≤1s).
Multipath detection and suppression
Works with passive and active antenna
Low power consumption: Max 7 mA@3.3V
NMEA-0183 compliant protocol or custom protocol
Operating voltage:3.0V to 3.6V

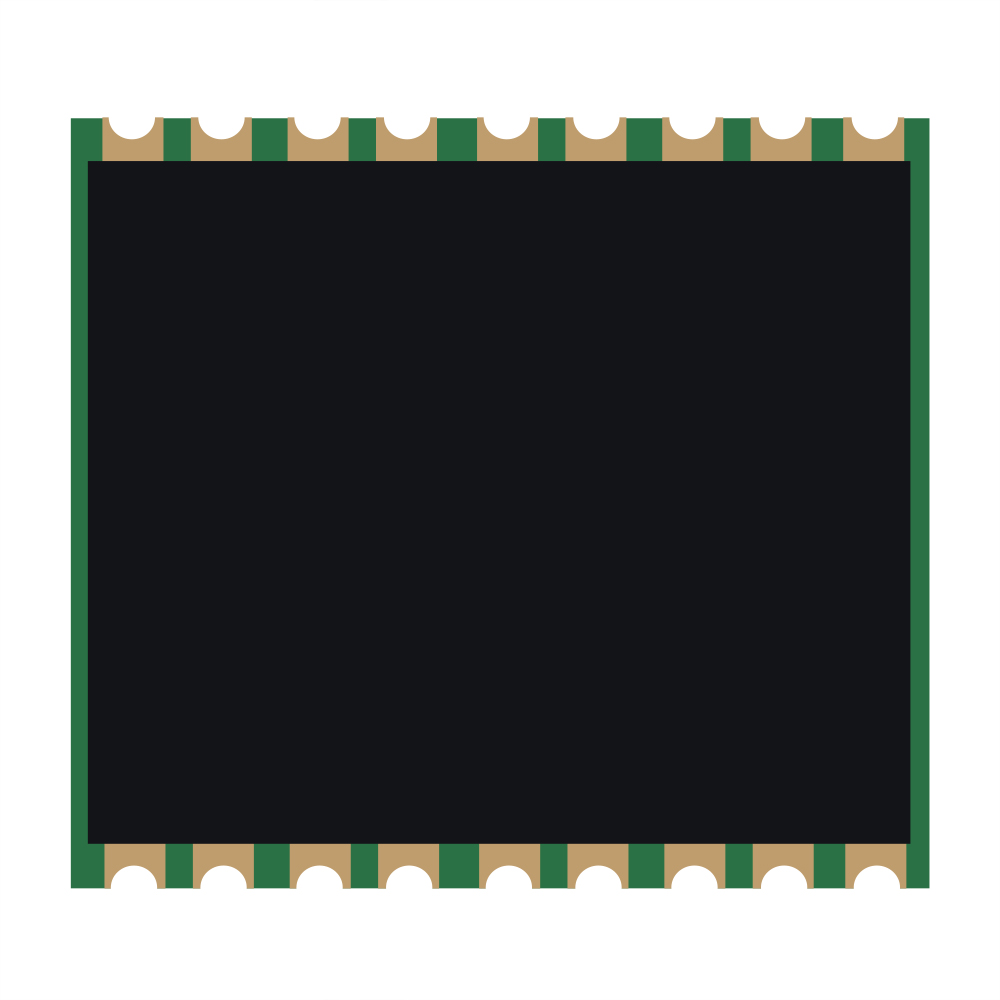

SMD type with stamp holes

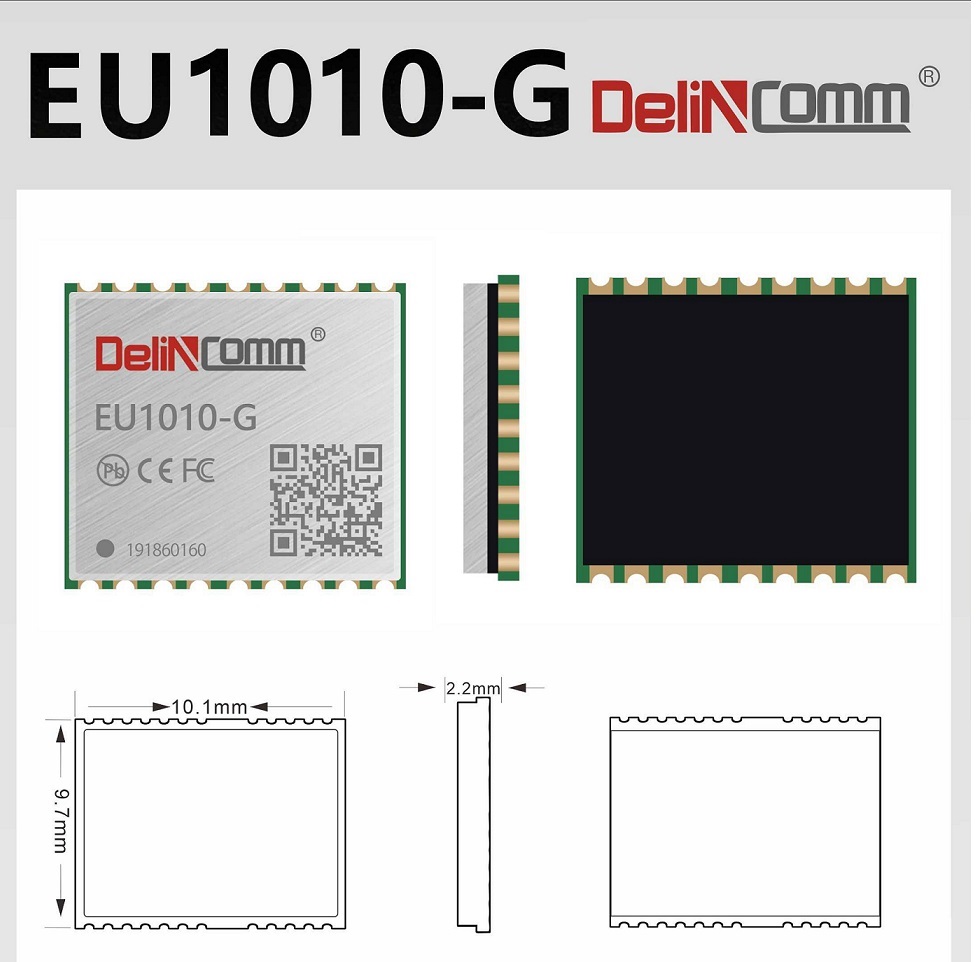

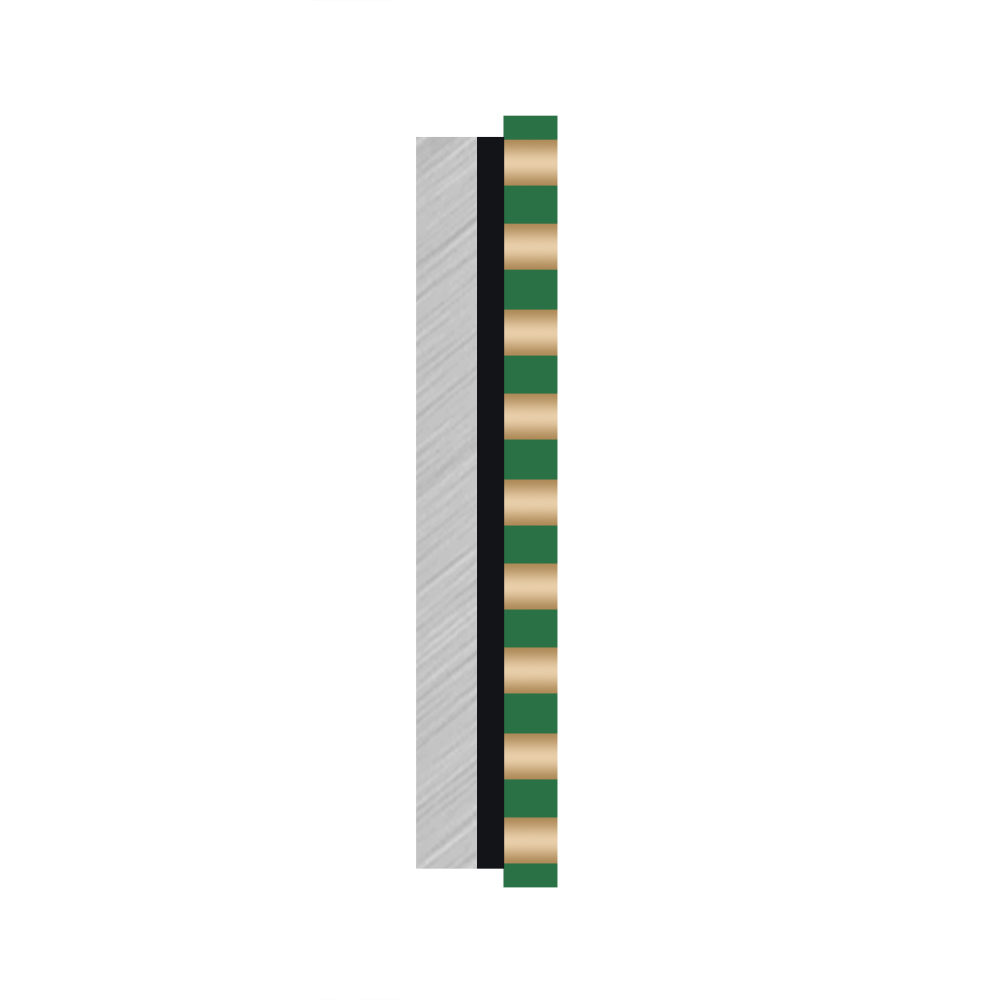

Small form factor: 10. 1x9.7x2.2mm
Operating temperature -40 ~ +85ºC
RoHS compliant (Lead-free)
