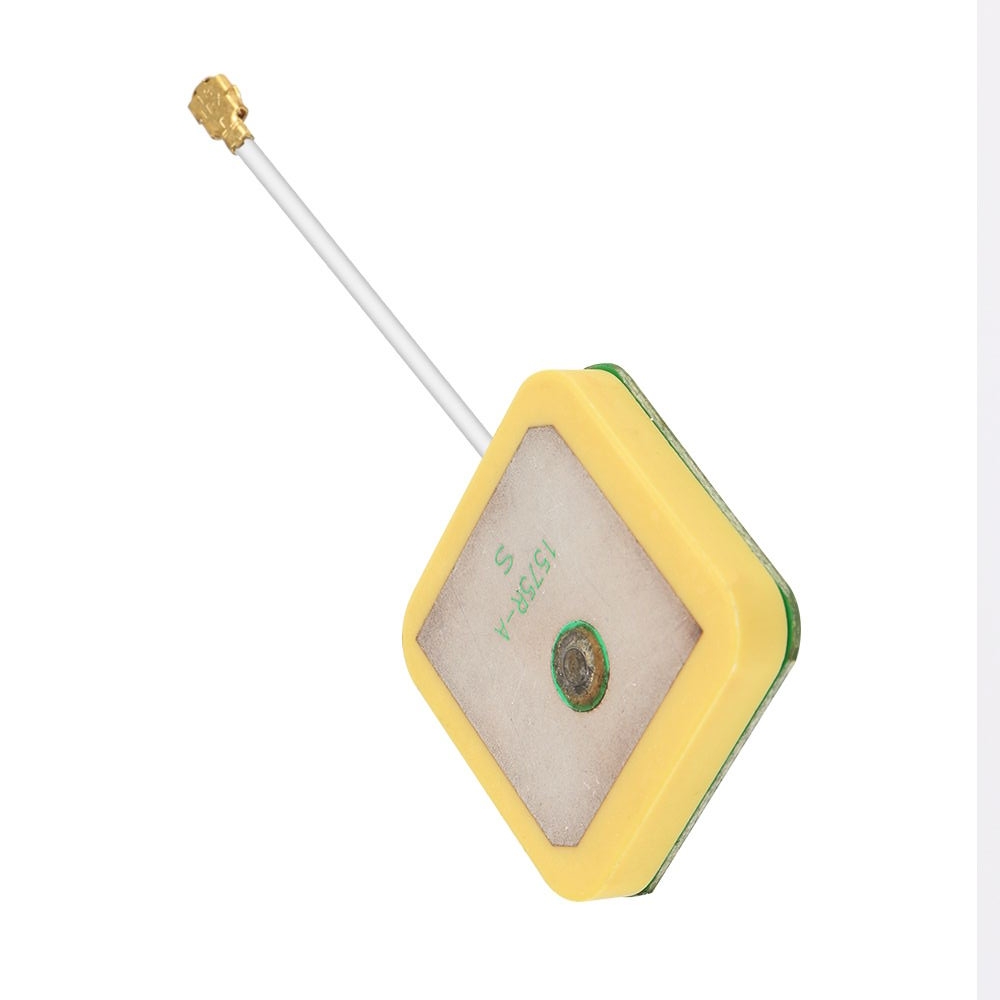

GPS&Glonass Internal Antenna

Advisory

Product description

Downloads

AGG-N2525-1I80 GPS&Glonass Internal Antenna Characteristic

Item		Specifications
Antenna	Center Frequency	1575.42&1600MHz
	Band Width	≥10 MHz
	Gain (maximum direction)	0dB
	Gain (10 °elevation)	-5dB
	Ploriaztion	RHCP
	Impedance	50Ω
LNA	Gain	20±2dB
	V.S.W.R.	≤2.0
	Noise Figure	≤2.0
	Supply Voltage	2.7~3.3V
Mechanical	Dimension	25x25x4.7mm
	Cable	RF1.13 / 80mm
	Mounting Method	Embedded
	Connector	IPEX
	Weight	20g
	Operating Temp.	-40℃～+85℃
	Operating Humidity	0%～95%
