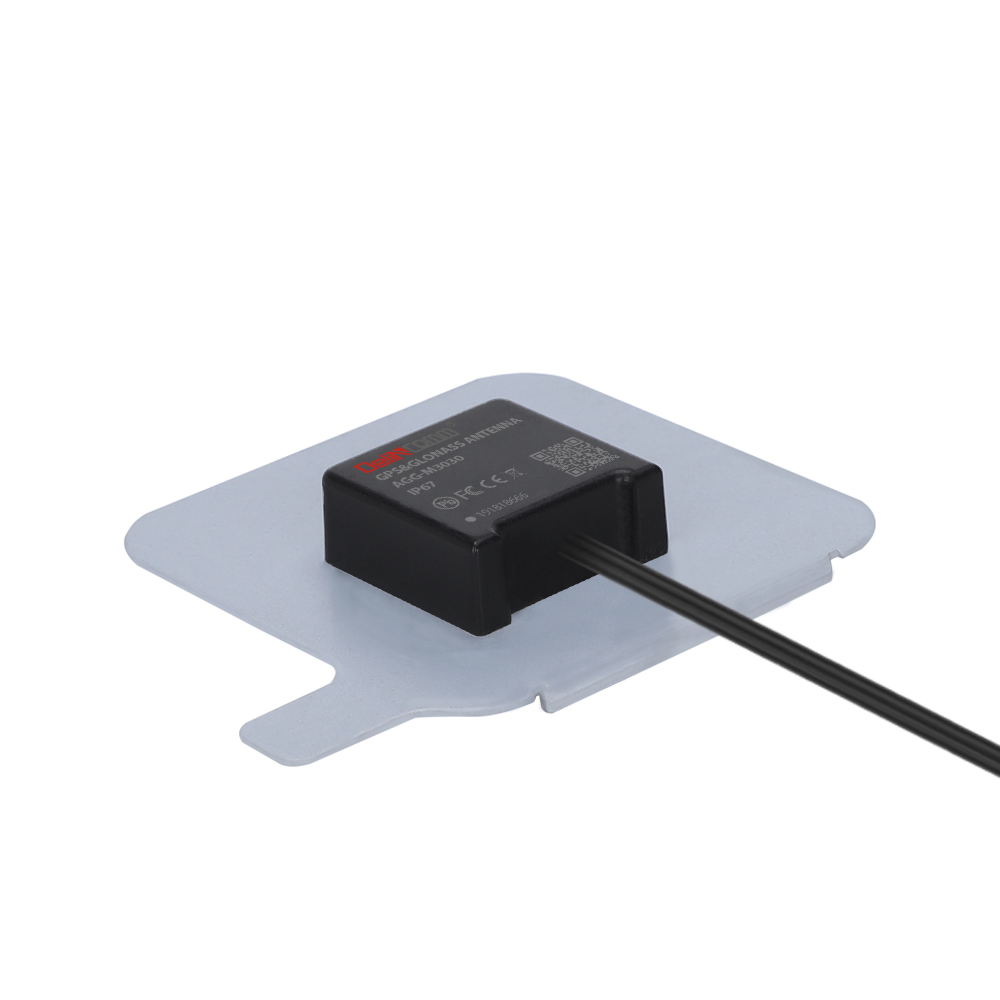

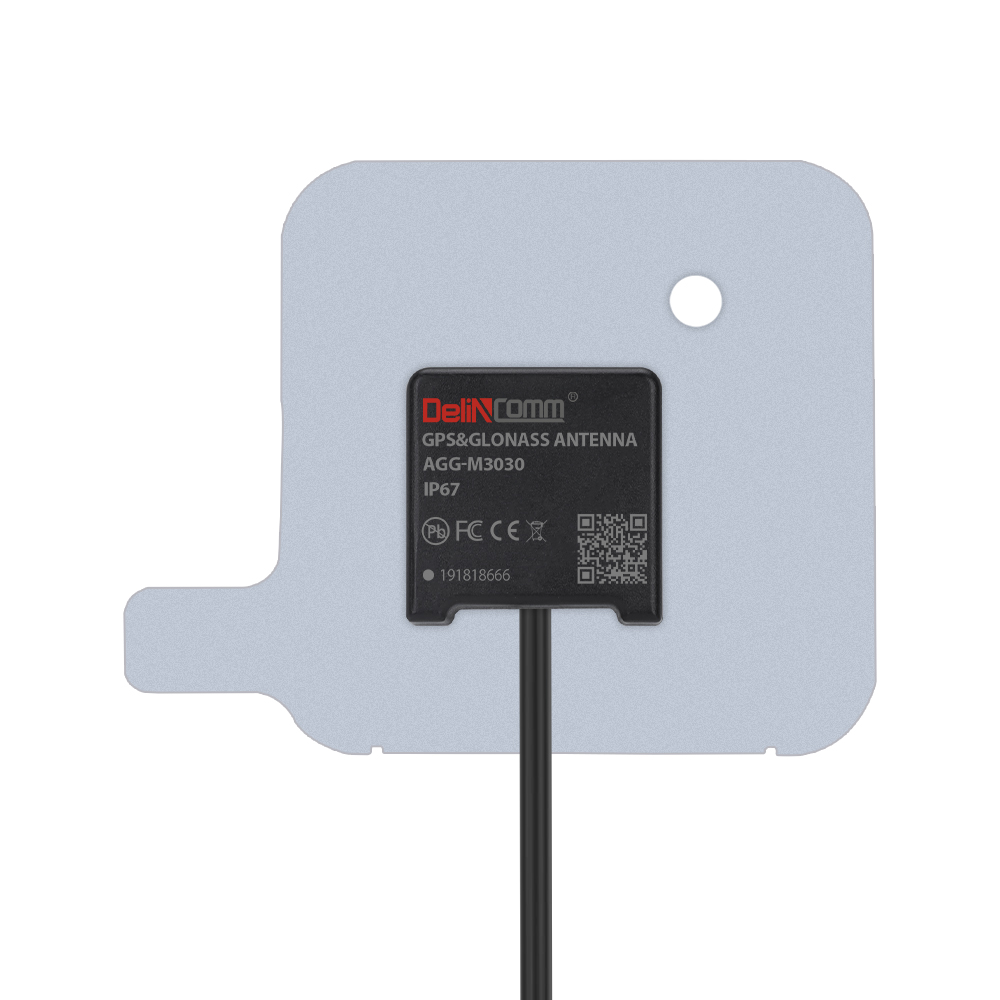

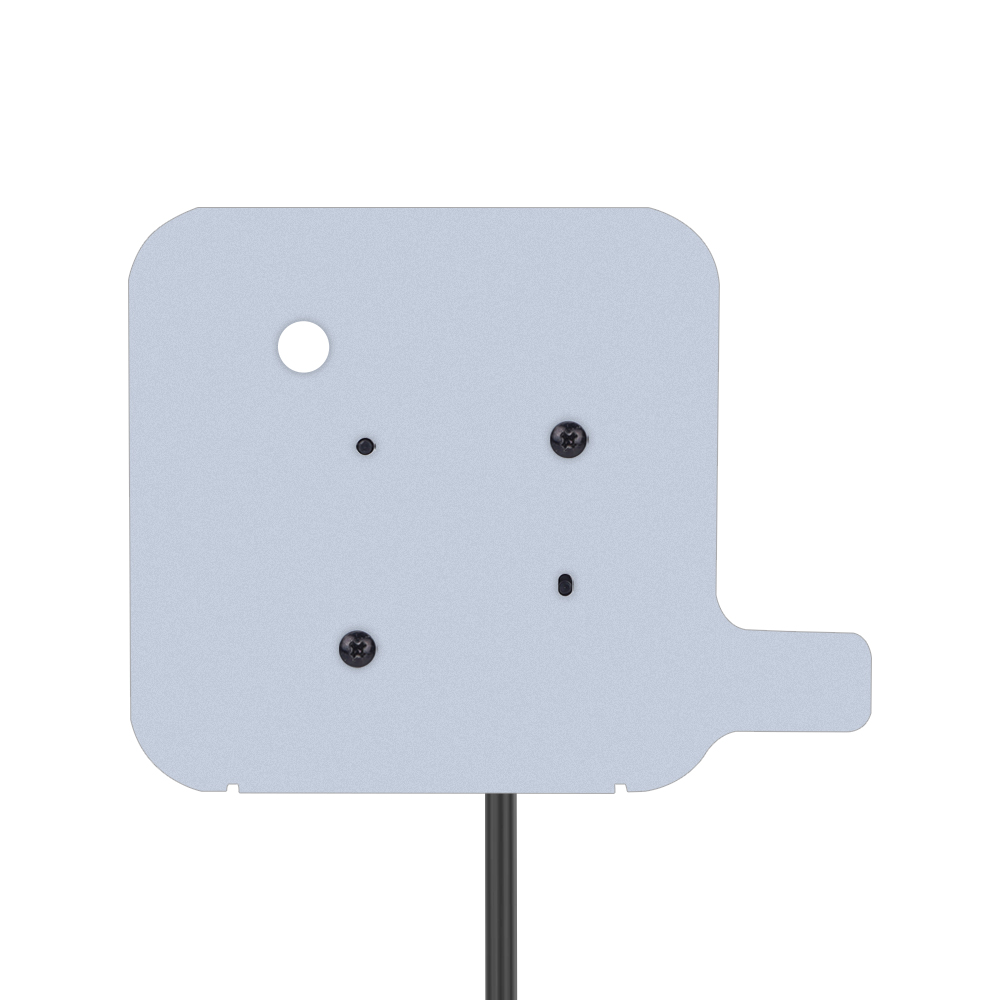

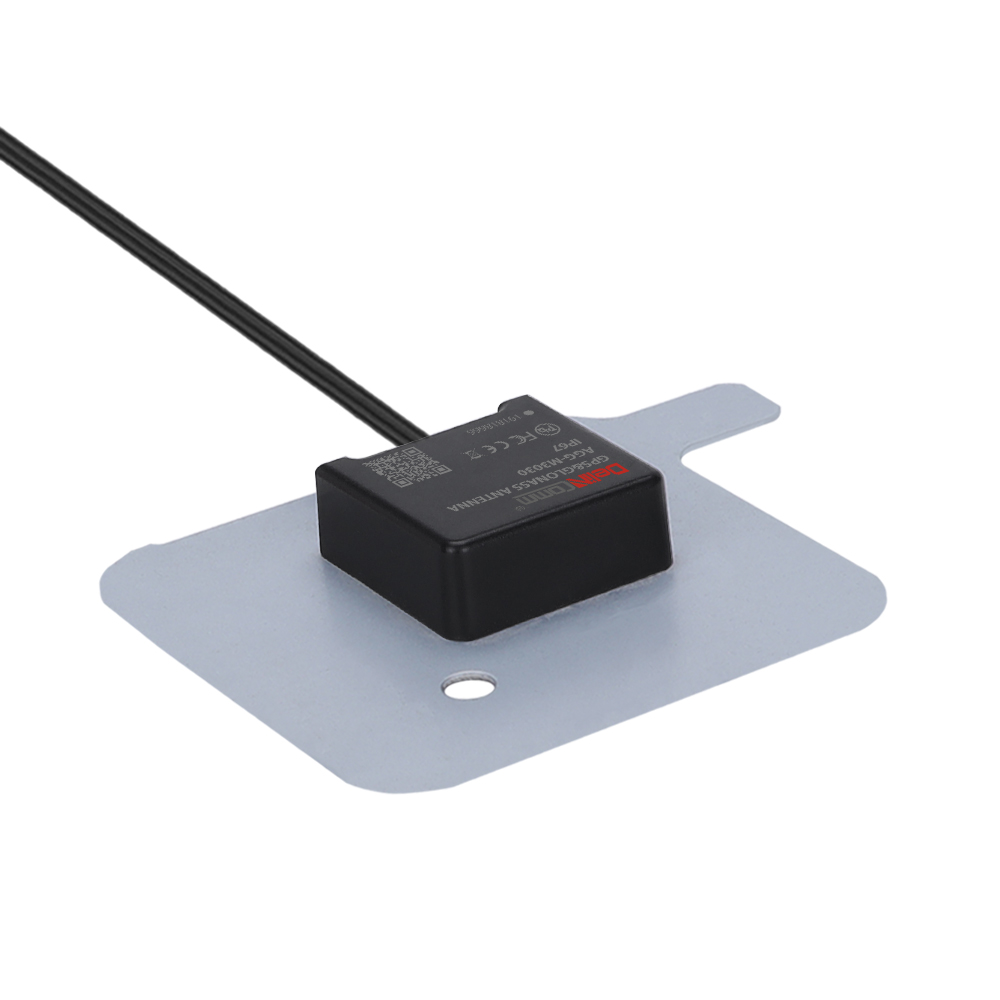

GPS&Glonass External Antenna AGG-M3030


Advisory

Product description

Downloads

AGG-M3030  GPS&Glonass Circle Antenna Characteristic


Item

Specifications

Antenna

Center Frequency

1575.42&1600±3 MHz

Antenna Efficiency

45%

Gain

3dBi

V.S.W.R.

≤2.0

Ploriaztion

RHCP

Impedance

50Ω

Radiation Pattern

OMNI

LNA

Gain

28±3dB

V.S.W.R.

≤2.0

Noise Figure

<2.0

Supply Voltage

3～5V

Current Consumption

≤20mA

Mechanical

Dimension

46×15.6 mm

Cable

RG174 / 5m

Mounting Method

Screw

Connector

FAKRA

Weight

104g

Operating Temp.

-40℃～+85℃

Operating Humidity

0%～95%
