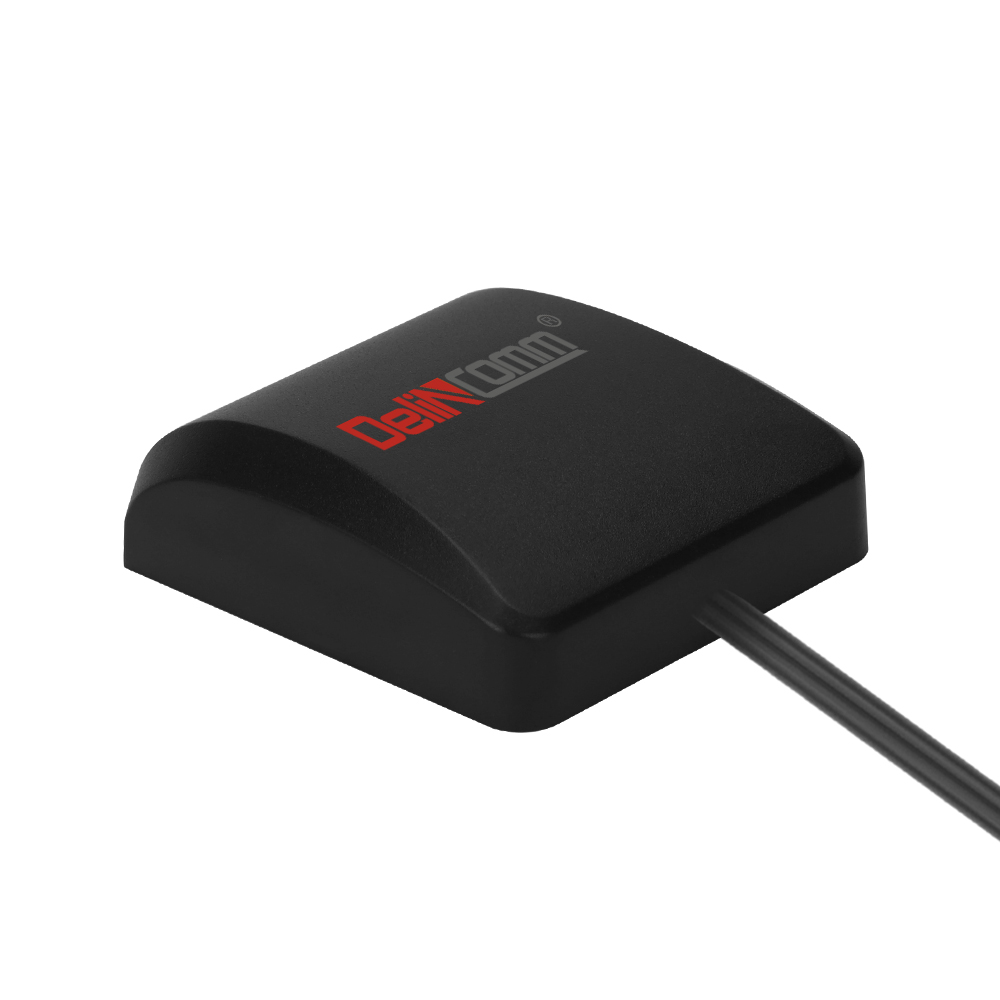

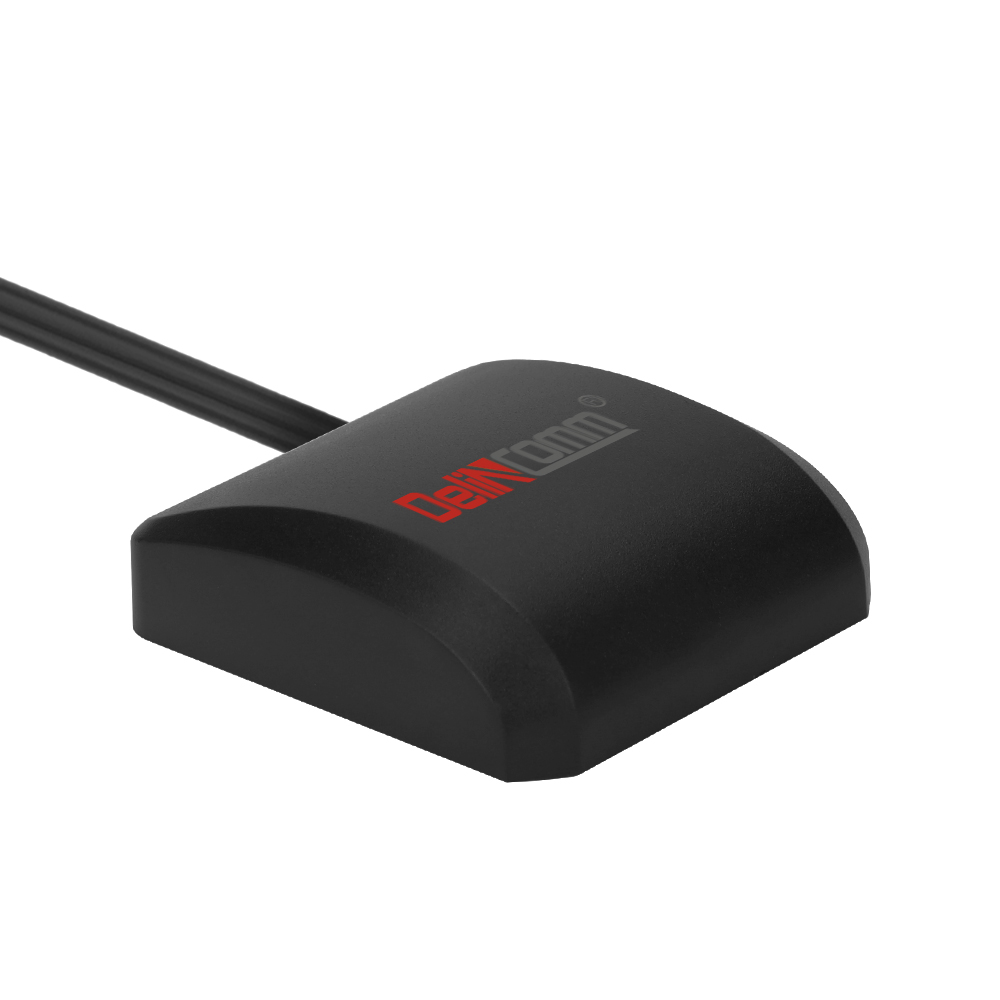

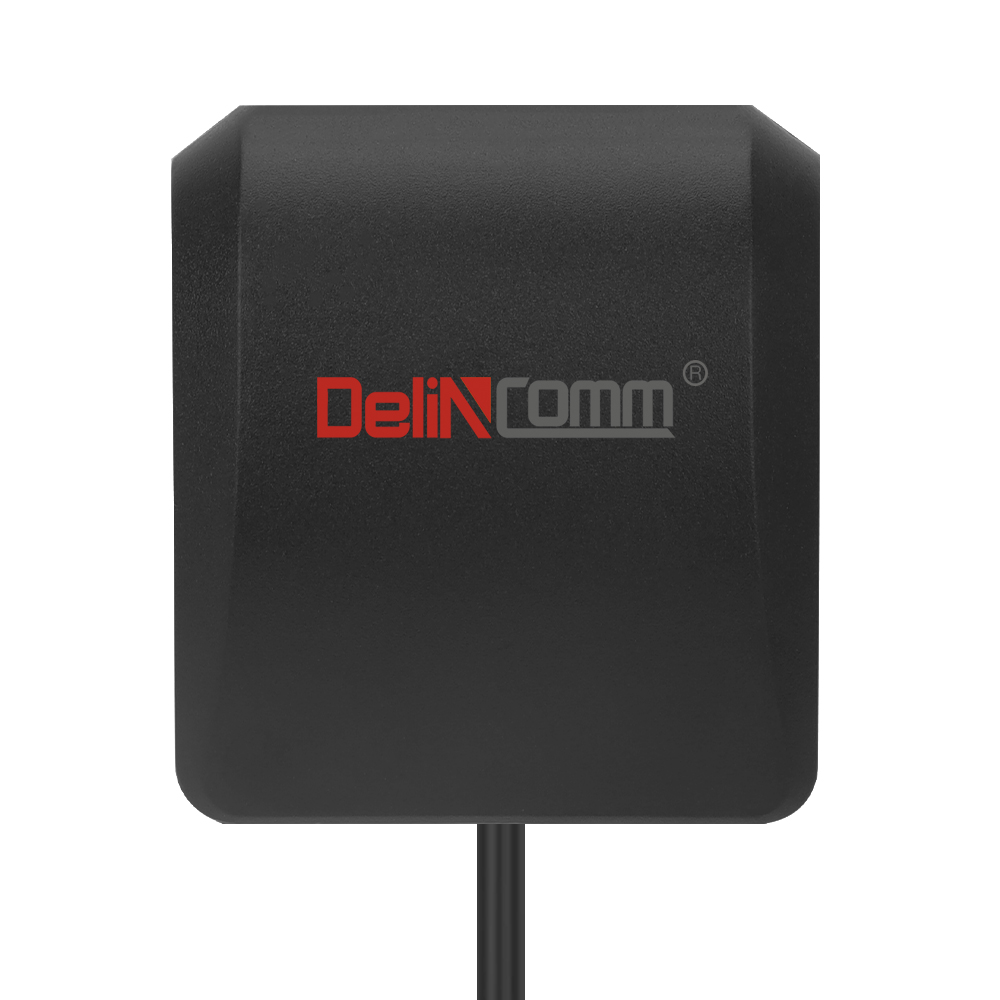

GPS External Antenna 1


Advisory

Product description

Downloads

AG-M5550 GPS Antenna Characteristic


Item

Specifications

Antenna

Center Frequency

1575.42±3 MHz

Band Width(MHz) (Return Loss≤-10dB)

≥10

Gain

3dBi

V.S.W.R.

≤2.0

Ploriaztion

RHCP

Impedance

50Ω

Radiation Pattern

OMNI

Frequency Temperature Coefficient (ppm/℃)

0±10

LNA

Gain

26±3dB

V.S.W.R.

≤2.0

Noise Figure

<2.0

Supply Voltage

3～5V

Current Consumption

≤20mA

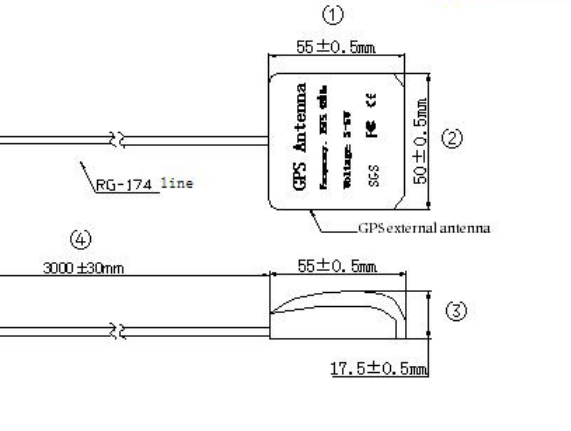

Mechanical

Dimension

55×50×17.5 mm

Cable

RG174 / 3m

Mounting Method

Screw

Connector

SMA

Weight

95g

Operating Temp.

-40℃～+85℃

Operating Humidity

0%～95%
